Edit Your Doc Sites

This section will introduce several useful features for editing your doc sites.

Use PlantUML to Create Diagrams

dev-docs-template provides out-of-box support for editing PlantUML (opens new window).

It launch a plantuml-server container to provide PlantUML preview/export support.

PlantUML is a component that allows to quickly write :

• Sequence diagram
• Usecase diagram
• Class diagram
• Object diagram
• Activity diagram (here is the legacy syntax)
• Component diagram
• Deployment diagram
• State diagram
• Timing diagram

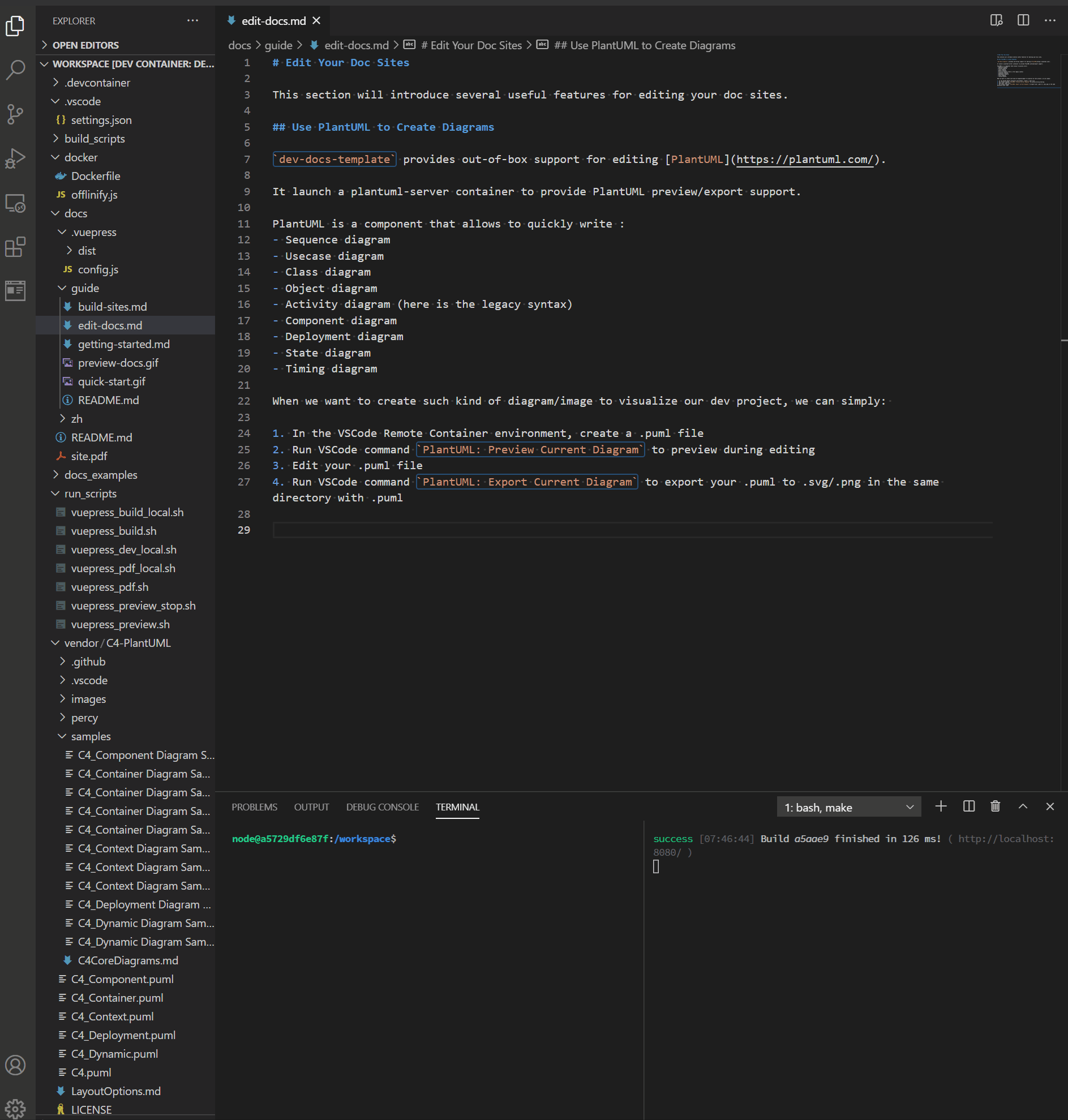

When we want to create such kind of diagram/image to visualize our dev project, we can simply:

1. In the VSCode Remote Container environment, create a .puml file
2. Run VSCode command PlantUML: Preview Current Diagram to preview during editing
3. Edit your .puml file
4. Run VSCode command PlantUML: Export Current Diagram to export your .puml to .svg/.png in the same directory with .puml

Use Draw.io to Create any Complicated Diagrams/Images

dev-docs-template includes Draw.io VSCode Extension to provide complicated diagram edit feature within VSCode.

We recommended to use .svg file (with suffix .drawio.svg) so that no export is needed.

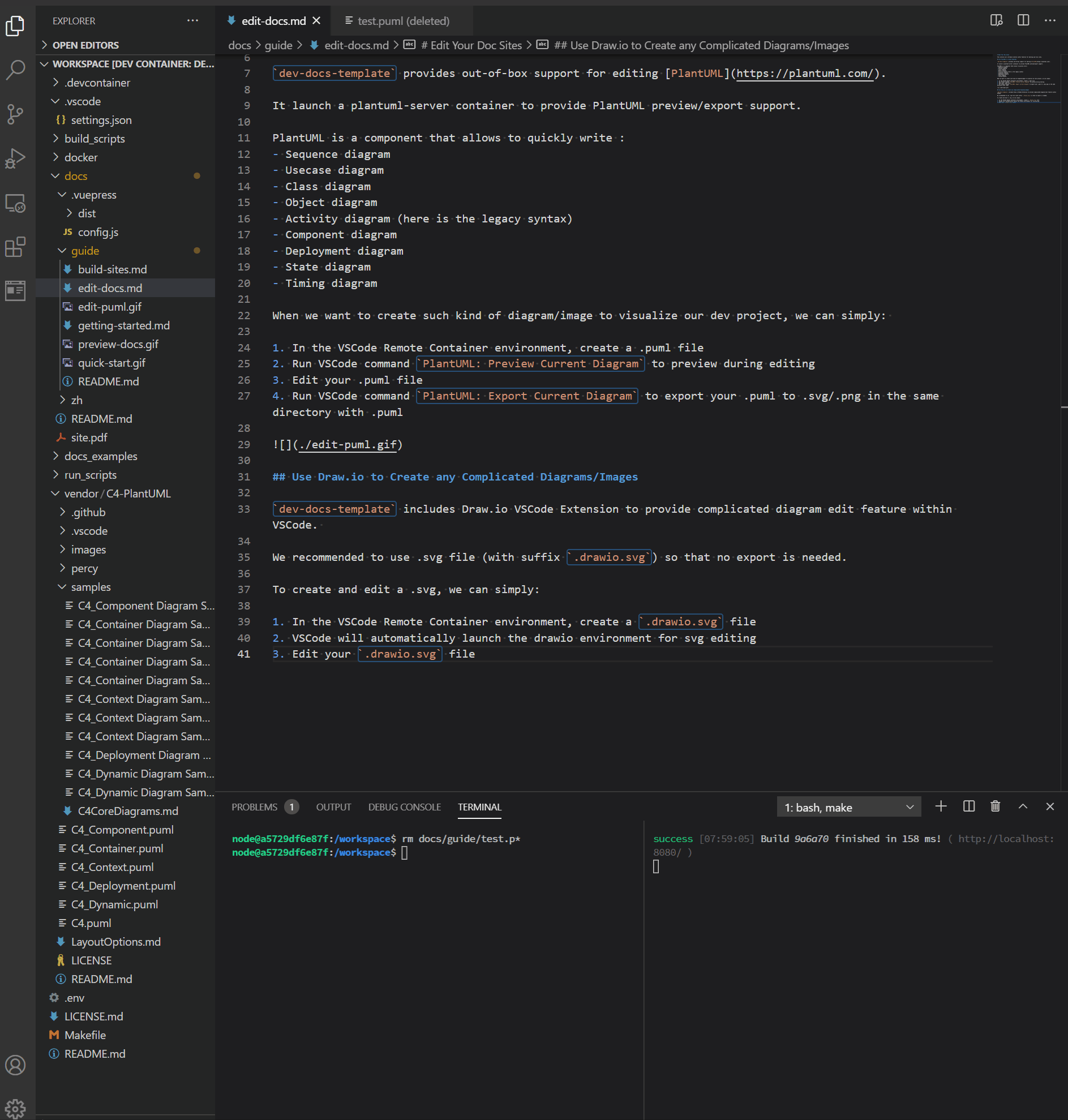

To create and edit a .svg, we can simply:

1. In the VSCode Remote Container environment, create a .drawio.svg file
2. VSCode will automatically launch the drawio environment for svg editing
3. Edit your .drawio.svg file

Configurate Navbar/Sidebar

The default sites use VuePress default theme, which include the Navbar/Sidebar features.

Relative configuration file is in $DOCS_RELATIVE_PATH/.vuepress/config.js ($DOCS_RELATIVE_PATH defined in ./.env, default docs_src).

Please check these highlighted parts

themeConfig: {
        sidebar: 'auto',
        locales: {
            '/': {
                selectText: 'Languages',
                label: 'English',
                nav: [
                    { text: 'Home', link: '/' },
                    { text: 'Guide', link: '/guide/index.html' },
                    { text: 'GitHub', link: 'https://github.com/lisy09/dev-docs-template' },
                ],
                sidebar: {
                    '/guide/': [
                        {
                            title: 'Guide',
                            collapsable: true,
                            children: [
                                '',
                                'getting-started',
                                'edit-docs',
                                'build-sites'
                            ]
                        }
                    ],
                }
            },

For further information, please check VuePress official documents about Navbar (opens new window) and Sidebar (opens new window).
